Serra modello X-AIR

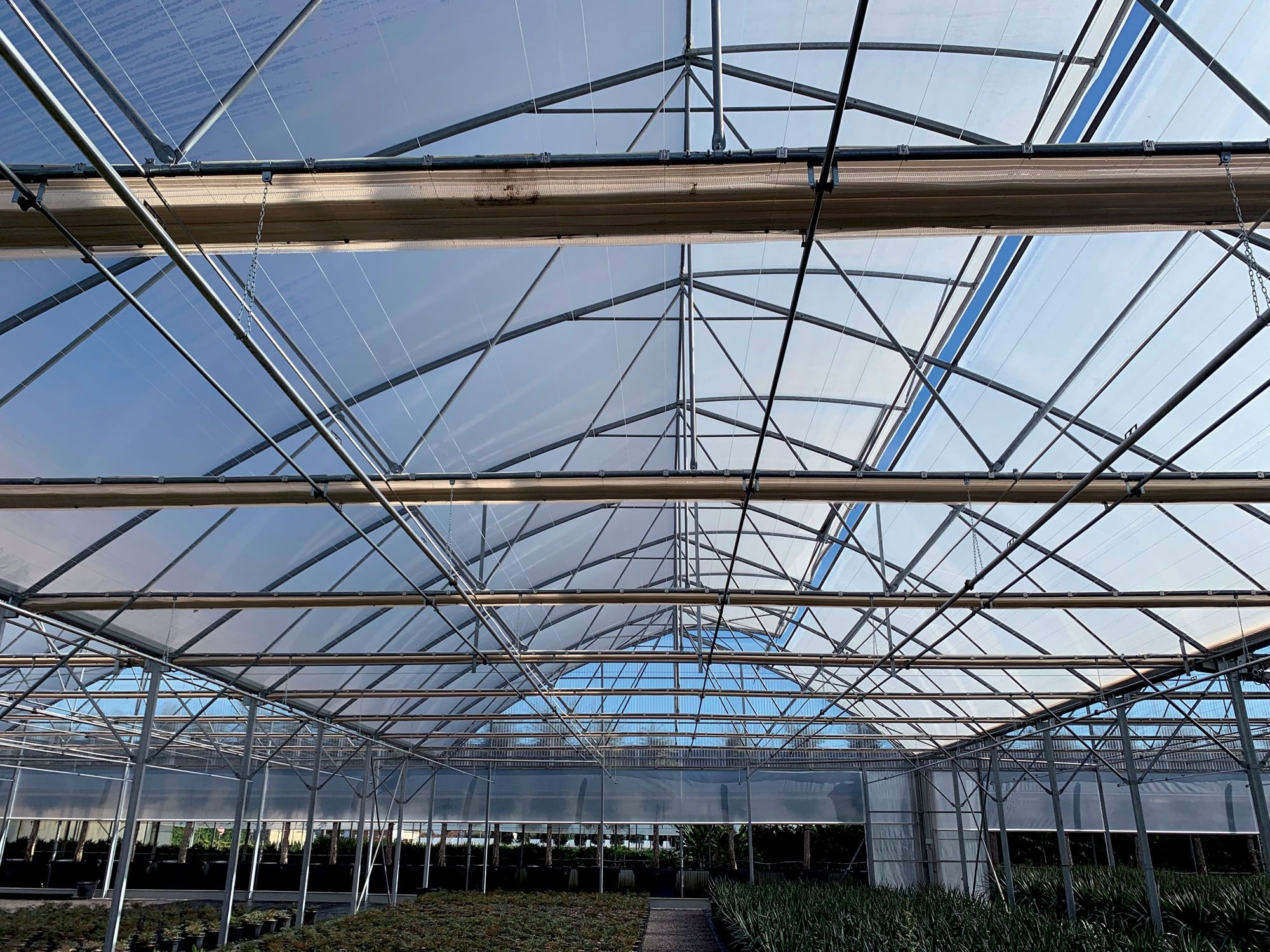

The X-Air greenhouse turns out to be a Gothic arched multi-tunnel.
Specifically designed for the horticultural nursery sector, it is characterized by an extreme constructive rationality centered on the use of an oval tubular arch of significant dimensions.
All the components used are made with a cold molding process, the harmonious arrangement of the structural elements gives the greenhouse great luminosity without limiting its robustness.
It is possible to have ridge heights of up to 5 m combined with the standard span pitch of 3 m.
Ridge windows can be installed on a single pitch or on both pitches.
The greenhouse can be covered with a single or double sheet with an air cushion.
Requisiti tecnici
The material is galvanized steel structure Z275
Distance between side pillars: 3,0 m
Distance between the central pillars: 3.0 m
Caratteristiche tecniche dei pilastri
RHS span pillar tube 100x60 mm S235JR Galvanized Z275.
RHS head pillar tube 100x60 mm in S235JR Galvanized Z275.
All poles will be installed on special RHS tube feet 90x50 mm in S235J0 with base plate and connection joint: all hot-dip galvanized after machining.
Archi
The distance between the arches is 3,00 m.

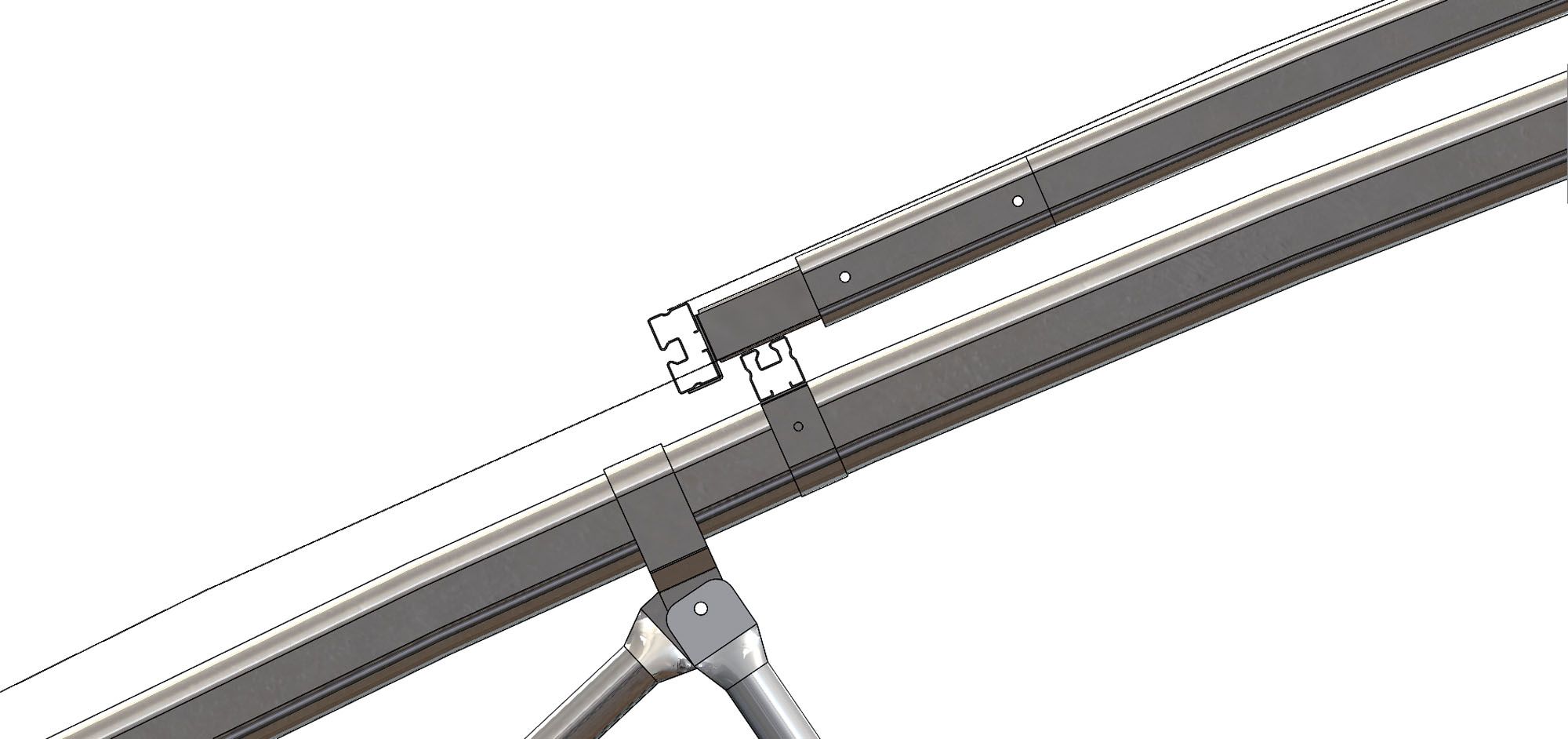

All our arches are in RHS oval 80x45 mm galvanized Z275.

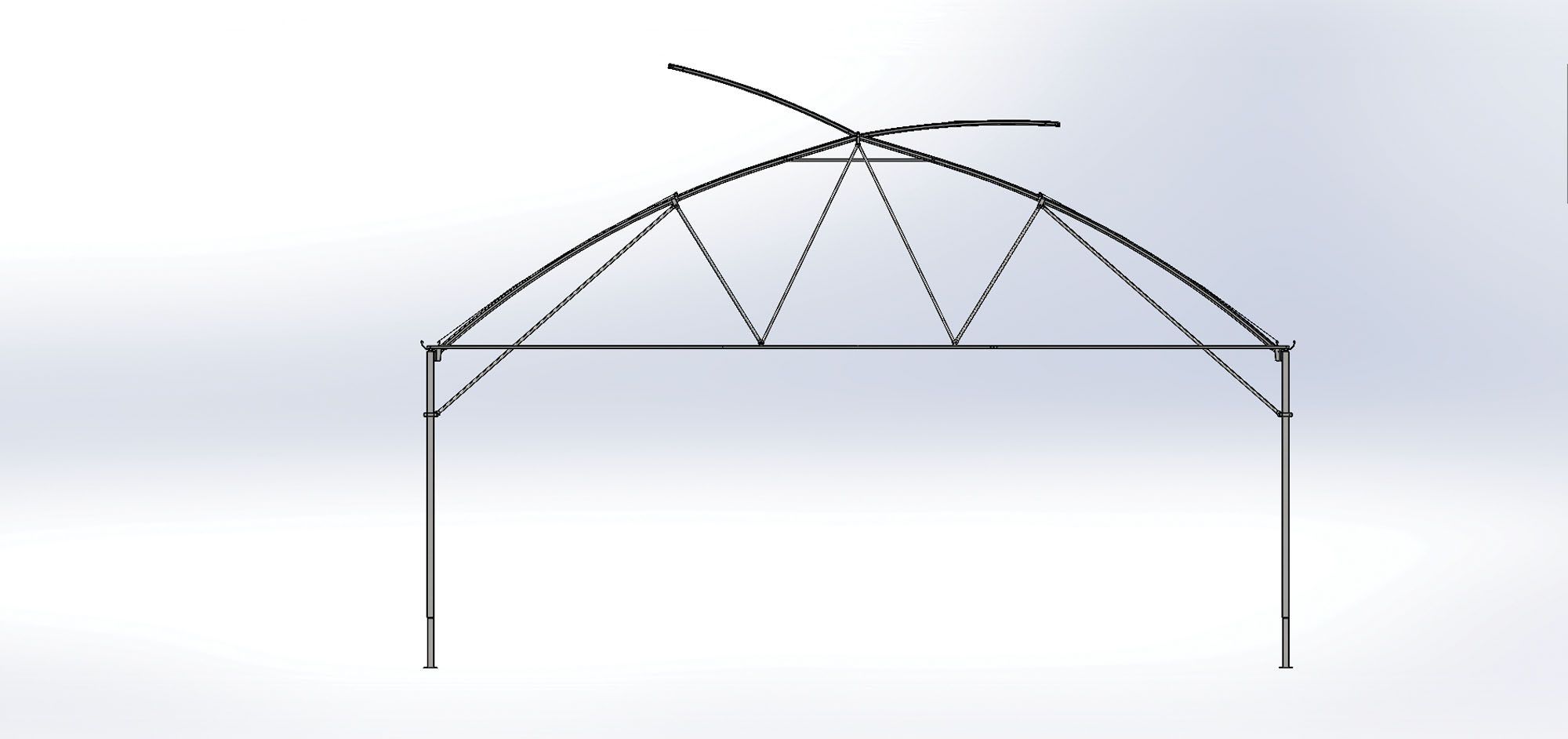

Composition of the arches placed on the columns:
- 1 horizontal chain in tube ø 40 Z275
- 2 diagonals in tube ø 32 Z275
- 2 diagonals in tube ø 40 Z275
- 2 struts keyed to the columns in tube ø 40 Z275

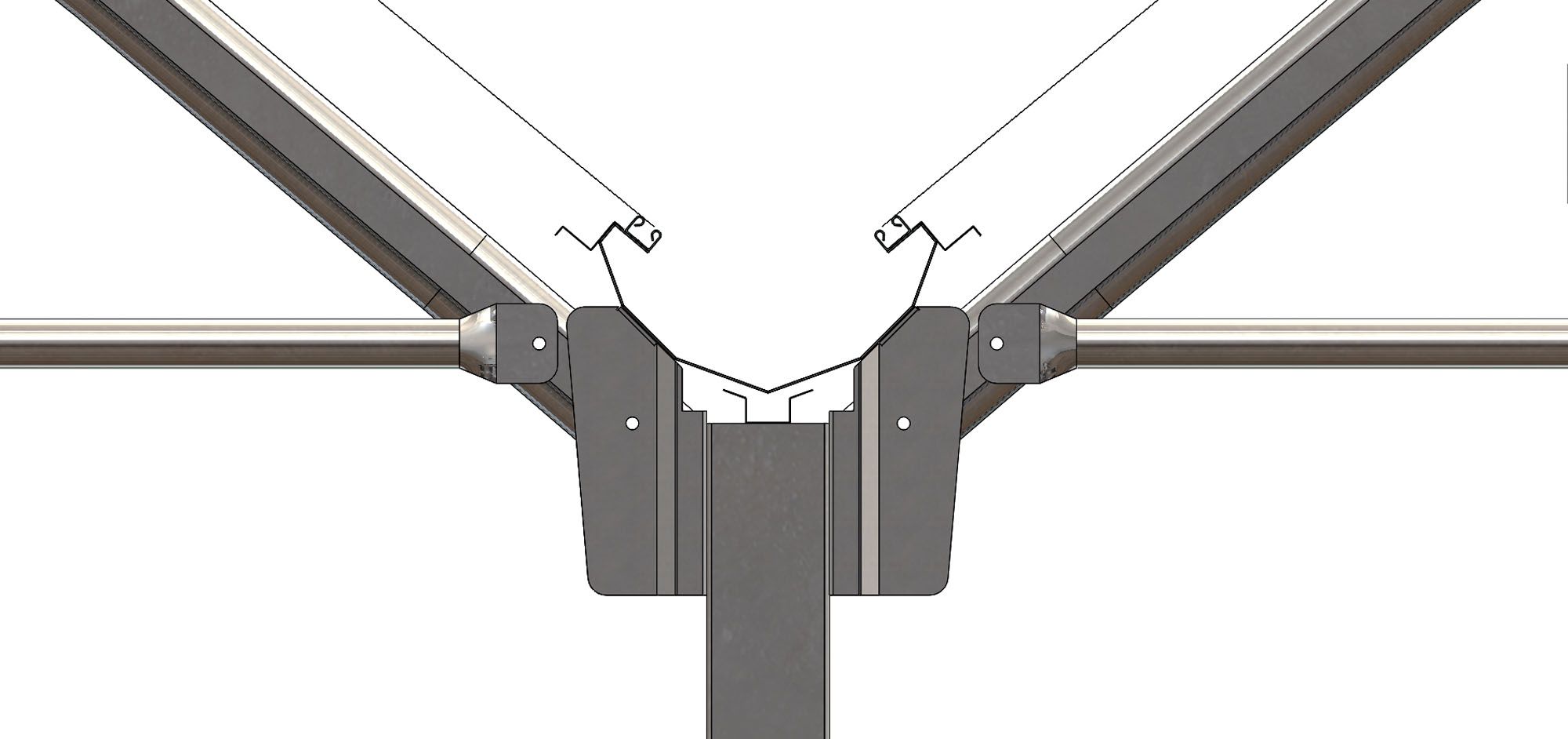

Canali
Dimensions of the channels: 500 mm and 9 folds. Length 3100 mm.
The channels are 1,5 mm thick made of ZM175 magnesium zinc sheet.
Collect condensate provided on the inner edge of the channel to channel the condensate accumulated by the fixed pitch sheet.
Provided under the lower V of the channel to channel the condensate produced by the channel itself.
Finestre di colmo
Opening mid-pitch, made up of a curved arch in oval tubular 60x30 mm Z275 and a mobile ledge in tubular 60x40 mm Z275.
Movement is ensured by a double-toothed rack assembly, casing with self-lubricating gear and ø 33,7 control axis tube supported with ball bearings.
The movement is entrusted to a gearmotor with built-in limit switch system.
Width standard | Tie height | Eaves height | Ridge height | Step |
8,00 m | 3,00 / 4,00 m | 3,00 / 4,00 m | 4,80 / 5,80 m | 2,50 / 3,00 m |
9,00 m | 3,00 / 4,00 m | 3,00 / 4,00 m | 5,50 / 6,50 m | 2,50 / 3,00 m |
9,60 m | 3,00 / 4,00 m | 3,00 / 4,00 m | 5,70 / 6,70 m | 2,50 / 3,00 m |
10,00 m | 3,00 / 4,00 m | 3,00 / 4,00 m | 5,80 / 6,80 m | 2,50 / 3,00 m |
12,80 m | 3,00 / 4,00 m | 3,00 / 4,00 m | 5,90 / 6,90 m | 2,50 / 3,00 m |
Standard sizes available in stock. Possibility to change the width, height and pitch measurements.
Width standard | Tie height | Eaves height | Ridge height | Step |
8,00 m | 3,00 / 4,00 m | 3,00 / 4,00 m | 4,80 / 5,80 m | 2,50 / 3,00 m |
9,00 m | 3,00 / 4,00 m | 3,00 / 4,00 m | 5,50 / 6,50 m | 2,50 / 3,00 m |
9,60 m | 3,00 / 4,00 m | 3,00 / 4,00 m | 5,70 / 6,70 m | 2,50 / 3,00 m |
10,00 m | 3,00 / 4,00 m | 3,00 / 4,00 m | 5,80 / 6,80 m | 2,50 / 3,00 m |
12,80 m | 3,00 / 4,00 m | 3,00 / 4,00 m | 5,90 / 6,90 m | 2,50 / 3,00 m |
Standard sizes available in stock. Possibility to change the width, height and pitch measurements.
