Serra modello AR

The AR MODEL greenhouses, with single, double or multiple lane straight sides, are designed to support high load values and resistance to atmospheric agents.

The AR MODEL is suitable for extensive crops of agriculture, floriculture, warehousing and agricultural storage.

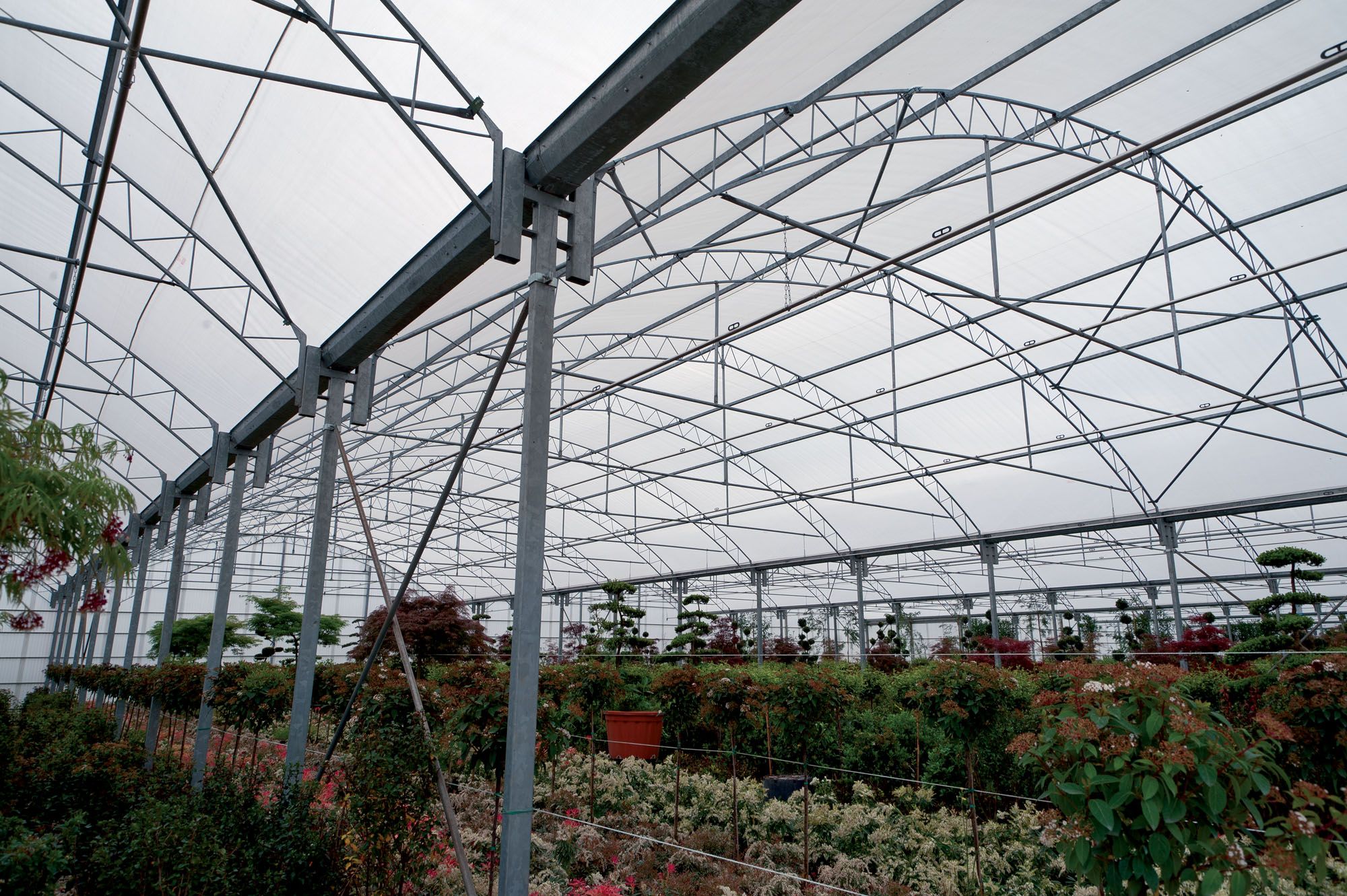

The reinforced structure with reticulated arches and rectangular tubular uprights offers ample guarantees of resistance to wind and snow.

The possibility of customizing the structure and materials makes the AR MODEL suitable for satisfying all customer needs.

AR
AR
AR

Caratteristiche tecniche

  • Arch in tubular 30x20 mm and rod Ø 12 mm hot-galvanized, complete with tie rods and candles.
  • Hot-galvanized 100x60 mm tubular poles.
  • Openings with winding by manually or automatically moved aluminum profiles.
  • Fronts in corrugated polycarbonate.
  • Single, double and long life polyethylene film cover.
Standard width Tie height Eaves height Height Step
8,00 m 3,50 / 4,00 m 3,30 / 4,00 m 4,90 / 5,60 m 3,00 m
9,00 m 3,50 / 4,00 m 3,30 / 4,00 m 5,00 / 5,70 m 3,00 m
10,00 m 3,50 / 4,00 m 3,30 / 4,00 m 5,60 / 6,30 m 3,00 m
11,00 m 3,50 / 4,00 m 3,30 / 4,00 m 5,80 / 6,50 m 3,00 m
12,00 m 3,50 / 4,00 m 3,30 / 4,00 m 6,00 / 6,70 m 3,00 m
15,00 m 3,50 / 4,50 m 3,30 / 4,00 m 6,30 / 7,00 m 3,00 m

Standard sizes available in stock. Ability to change the width measurements, height and pitch.

Standard width Tie height Eaves height Height Step
8,00 m 3,50 / 4,00 m 3,30 / 4,00 m 4,90 / 5,60 m 3,00 m
9,00 m 3,50 / 4,00 m 3,30 / 4,00 m 5,00 / 5,70 m 3,00 m
10,00 m 3,50 / 4,00 m 3,30 / 4,00 m 5,60 / 6,30 m 3,00 m
11,00 m 3,50 / 4,00 m 3,30 / 4,00 m 5,80 / 6,50 m 3,00 m
12,00 m 3,50 / 4,00 m 3,30 / 4,00 m 6,00 / 6,70 m 3,00 m
15,00 m 3,50 / 4,50 m 3,30 / 4,00 m 6,30 / 7,00 m 3,00 m

Standard sizes available in stock. Ability to change the width measurements, height and pitch.
