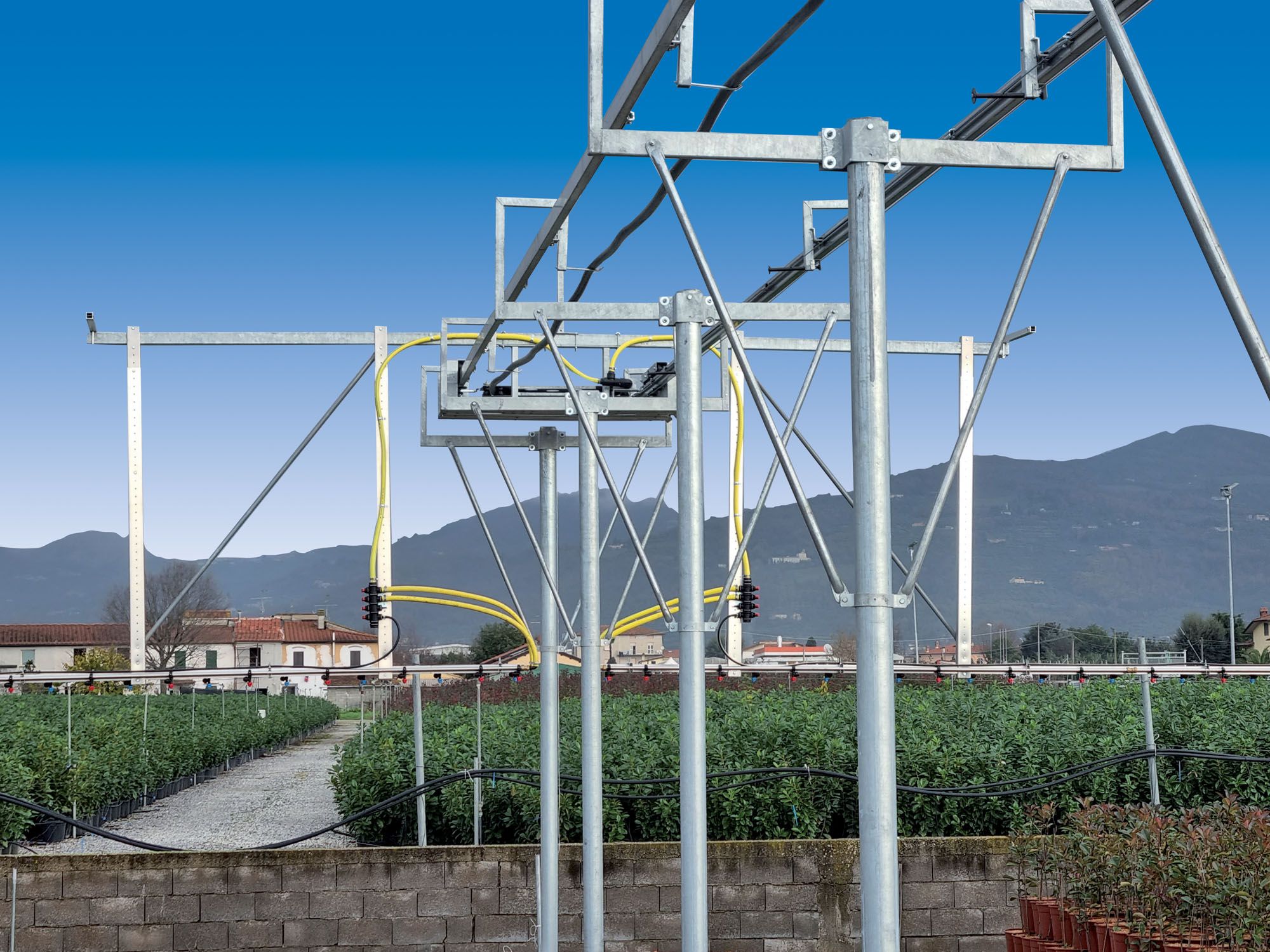

The model T056-2R mobile irrigation system is an advanced and reliable tool for the automatic irrigation of protected crops.
It is implemented in:
- Under-greenhouse configuration: with double track structure, center distance 1160 mm, manhole in the centre.
- Outdoor configuration (open field): with double track, wheelbase 1280 mm, load-bearing structure with hot-dip galvanized columns laid without the need for cement work.
Description of materials
- Mobile trolleys in galvanized steel, on wheels equipped with bearings.
- Movement with fixed motor and steel ropes, adjustable speed from 3 to 16 m/min.
- Polyethylene water supply pipe d. 32 or d. 40 with raised system, single or double pipe with nozzles every 50 cm for irrigation and treatment - Installed power: 230 V – 0.4 Kw – 50/60Hz
- The bar can be configured in 4.0, thanks to the OMNIGREEN 365-MASTER R1-P13 system connected to a remote server and OMNIGREEN 365-FIELD R1-integrated radio module with 8 outputs and web application based on android and ios.
